Although I do not usually program chips, because I prefer to use complete modules, mainly for utilizing their USB port as a user interface, I happened to work on a few projects with a bare ATtiny85, which requires a programmer. I managed with a custom programmer, built on an Arduino Nano loaded with the ArduinoISP
sketch. But as you all know, you never program once. Actually, I estimate that for program beutifications, minor adjustments etc. I program at least 5 times, and this, after the program is fully debugged!!! That is a lot of work, even for a single project.

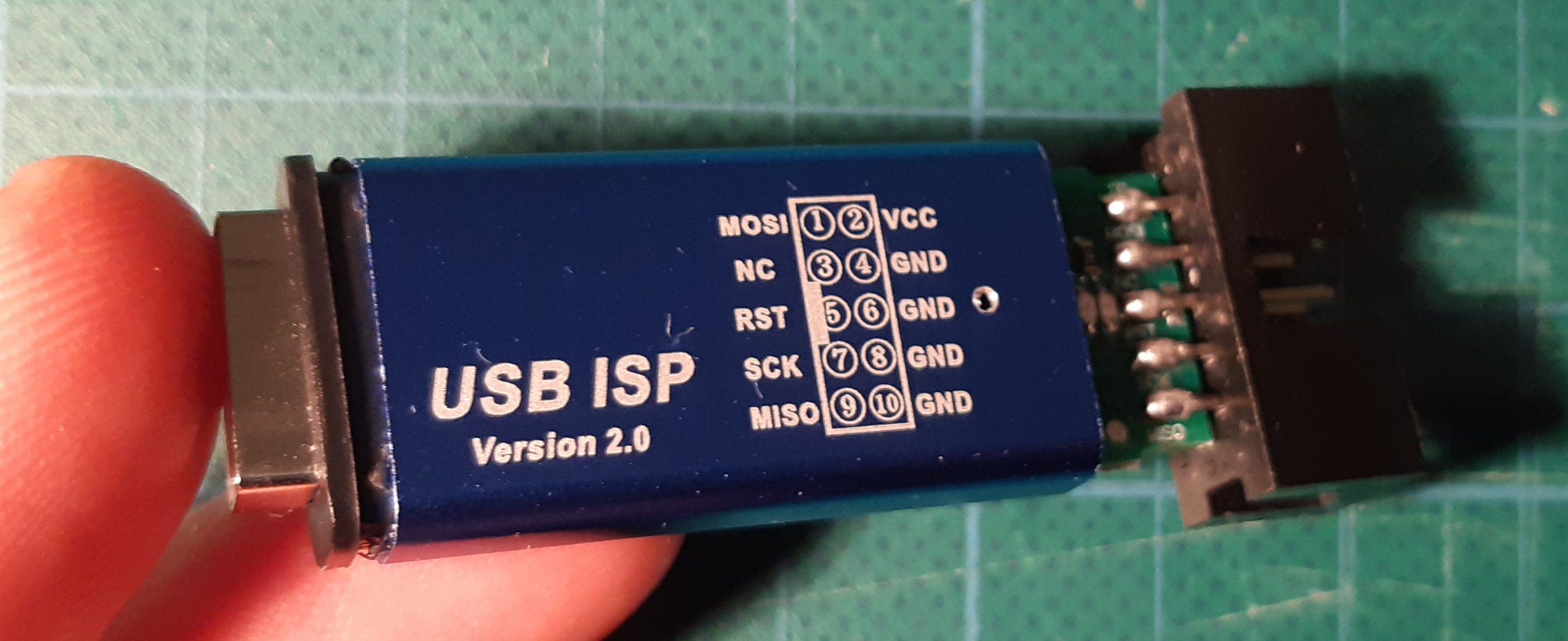

So, I was tired of having bare PCBs and wires all over the place, therefore I decided to order a USB programmer in a brightly colored metal case. The device I ordered was described as “Aluminum shell USB ISP USBISP USBASP ASP Programmer for 51 ATMEL AVR WIN7 64 (Random color)“ shown below.

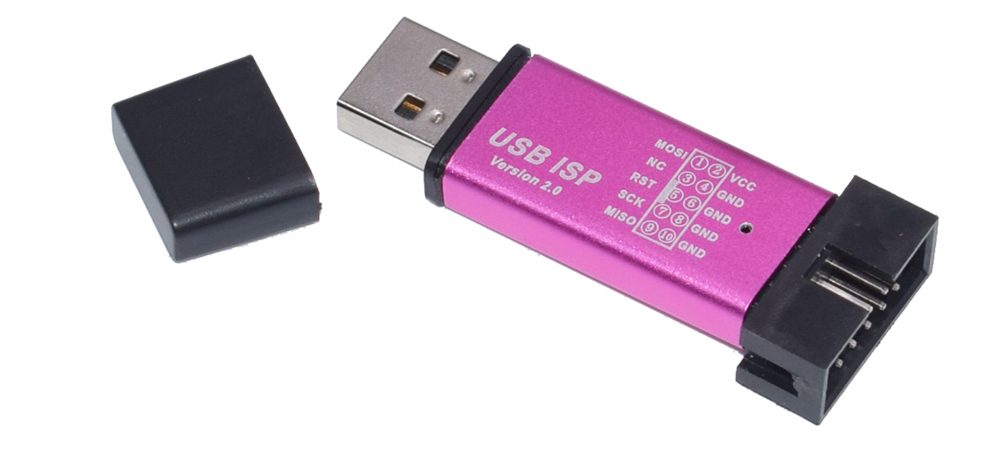

I assumed that it would be the USBasp - USB programmer for Atmel AVR controllers. I made the mistake of not making any research before I ordered but at a price of less than 2 Euros, it seemed a low risk.
After the product arrived, I tested it, considering it would function as a USBasp, but it would not work. Its light remained red at all times, not showing any sign of activity. I am working on a Linux Mint desktop and dmesg reported the USB device as:
$ dmesg ..... usb 3-1: new low-speed USB device number 3 using ohci-platform usb 3-1: New USB device found, idVendor=03eb, idProduct=c8b4 usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 usb 3-1: Product: USBHID usb 3-1: Manufacturer: zhifengsoft
Googling the name of the manufacturer “zhifengsoft” as well as “usb-isp”, a ton of information came through. It seems that the device is working along with the Windows program ProgISP and is not recognized by avrdude
, the program which uploads code to Arduino and other Atmel micro-controllers.
Luckily, I did not have to re-invent the wheel because there has been a lot of excellent work. I decided to publish this article because:
In order to make the device work on Linux and communicate with the Arduino IDE via avrdude, the solution is to re-flash the firmware of the USB-ISP, in order to make it behave as a USBasp, which in turn is recognized by avrdude. Luckily, we can use the pins of the exposed connector, as well as make an wire bridge to accomplish this re-flashing.
Note: avrdude has also an option to support programmers of type usbasp-clone
, but I did not test it. You can see a list of all supported programmers with the command:
$ avrdude -c ?
So, to have a programmer, you need another programmer to re-flash it with the proper firmware!
To avoid any misconceptions:
File → Examples
that makes Arduino behave as an stk500v1
compatible programmerThe target audience for this article is mainly hobbyists. My opinion is that this device is by no means suitable for any corporate environment for production usage.
The controller inside my USB-ISP is an ATmega88. As found online, other models have an ATmega8. Just remember it when you construct the parameters at the commands below.
You will need:
If you brick an MCU because you selected an improper clock source, there are solutions to revive your chip, but this is another story. Just keep in mind that the MCU which we are programming needs its own working clock source at all times. The signal SCK is only used for timing the SPI interface and it is not a substitute for the MCU clock source.
Proceed at your own risk.
Be cautious regarding the licensing of the USBasp firmware and especially the USB functionality which is implemented by V-USB.
Locate the path of avrdude
. We will be using it a lot below.
Try:
$ sudo find / -name avrdude -print $ sudo find / -name avrdude.conf -print
The executable is at somefolder/bin/avrdude
and its configuration file is at somefolder/etc/avrdude.conf
where somefolder
is a path decided by your installation script or yourself. You may find several instances of the program and the configuration file. If, like me, you have several version of the Arduino IDE, each version has its own copy. In a multi-user environment, you may find also a hidden folder in the user's home directory, such as:
.arduino15/packages/arduino/tools/avrdude/6.3.0-arduino17/bin .arduino15/packages/arduino/tools/avrdude/6.3.0-arduino17/etc/avrdude.conf
From all these copies, we only care about the one that is used by our Arduino IDE. To identify it, start the Arduino IDE. Select File→Preferences
and in the option Show verbose output during:
check the upload
check-box.
Load the Blink example and upload it to a board, as usual. Notice the messages appearing in the message pane and find the path from where the avrdude runs, along with all avrdude options that are created automatically by the IDE. In my case, it was:
/home/myuser/.arduino15/packages/arduino/tools/avrdude/6.3.0-arduino17/bin/avrdude -C/home/thisuser/.arduino15/packages/arduino/tools/avrdude/6.3.0-arduino17/etc/avrdude.conf ....
where I substituted my home directory with /home/myuser
.
There are several other parameters but at this stage we only care abut the configuration file, which is provided with option -C
.
You can leave the upload
check-box in the checked state, because we will use the extended messaging in the process.
Locate also the path of file programmers.txt
because we will need it below.
Arduino - 10-pin connector Vcc (+5V) 2 Vcc GND 4 GND MISO (12) 9 MISO MOSI (11) 1 MOSI SCK (13) 7 SCK (10) 5 RST

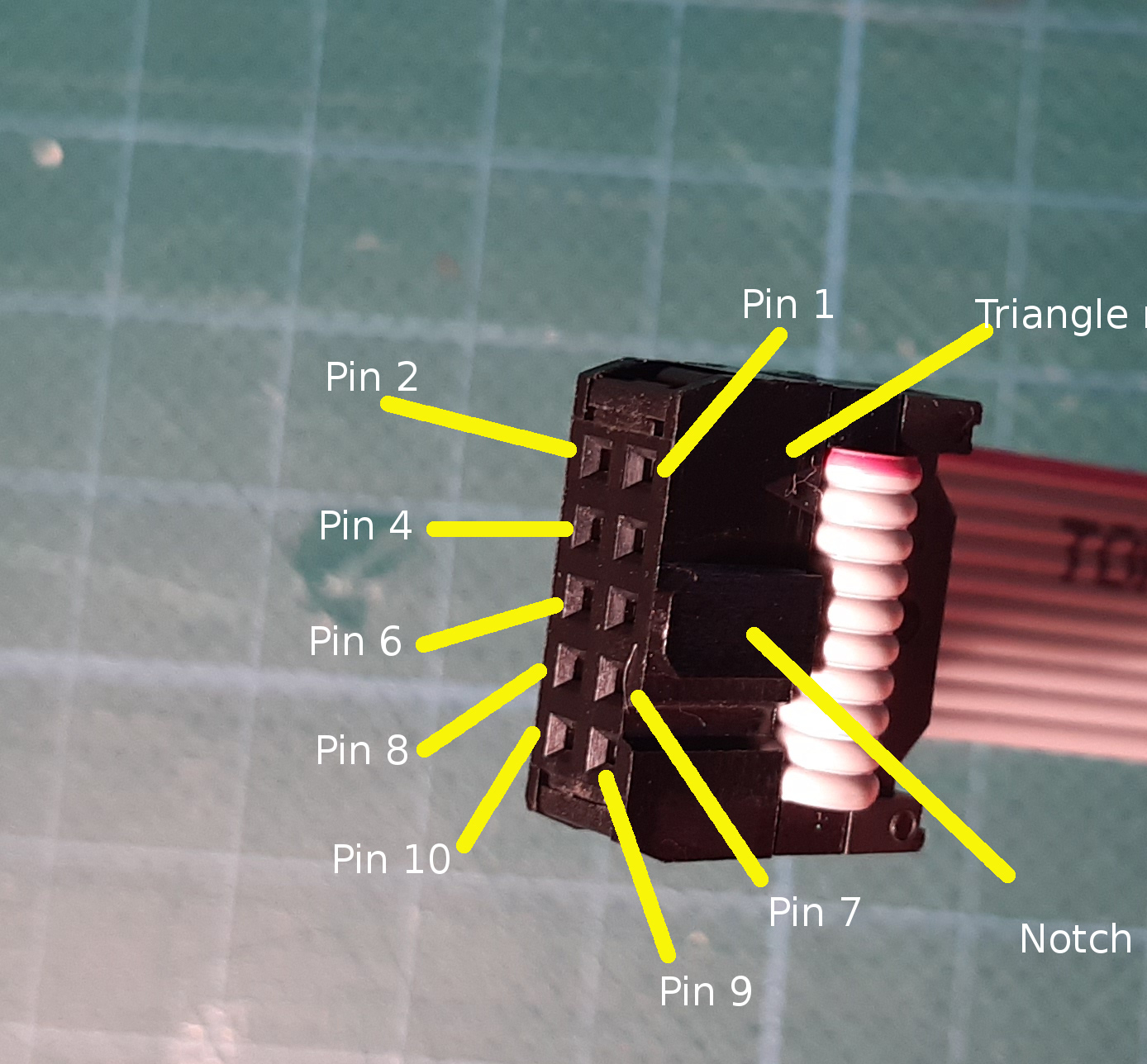

Be extra cautious about the numbering of the connector pins. Usually, there will be an arrow or a triangle marker imprinted on the connector that will mark pin number 1. This photo will help:
Note the location of pin 1 in respect to the notch.
I have also wired a 10uF capacitor between pins RESET and GND of the Nano during my attempts to make things work but this is not necessary.
Push the USB connector and the PCB will come out from the box header side.

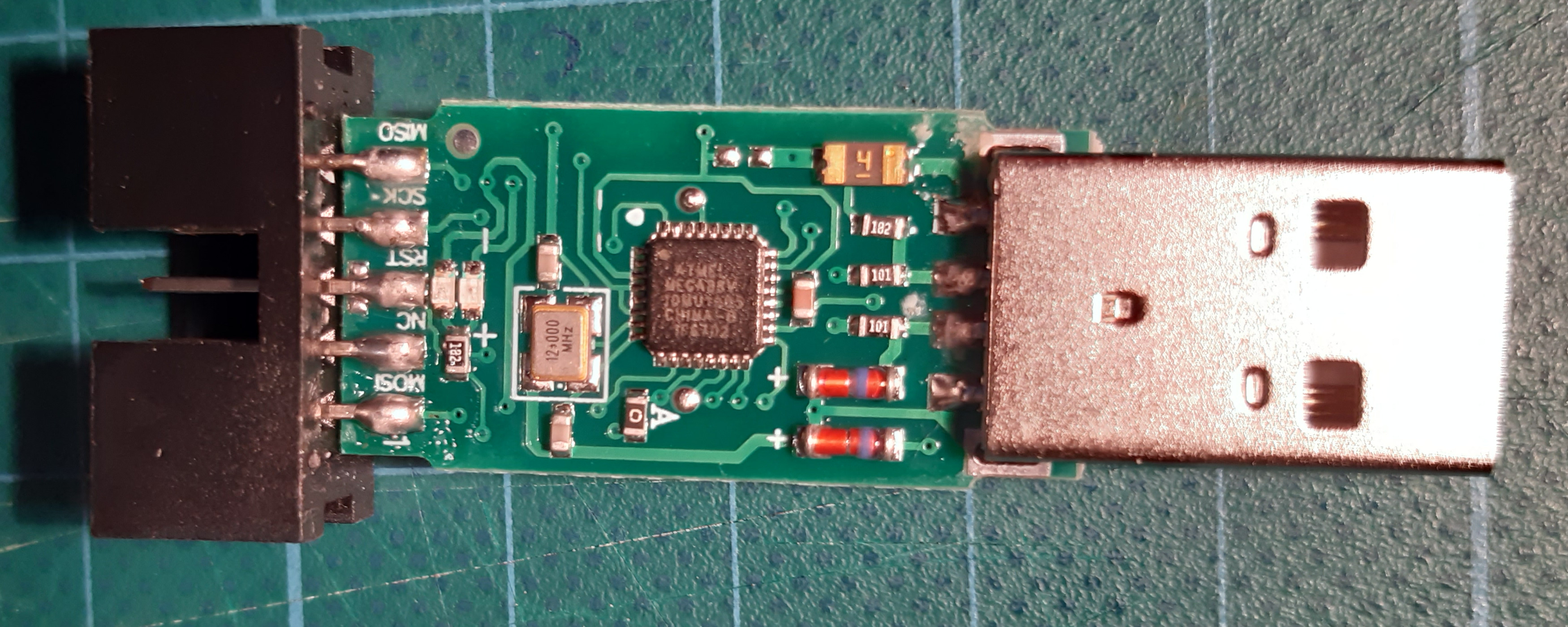

After taking it out, I noticed that it contains an ATMega88 running at a 12 MHz crystal and the PCB states that it is MX-U2BLSP-V5.00, probably mimicking MX-USBISP-V5.00 of another manufacturer. Notice also a 0 Ohm resistor, which is one of the source of our troubles, according to Making USBasp Chinese Clones Usable by Darell Tan.

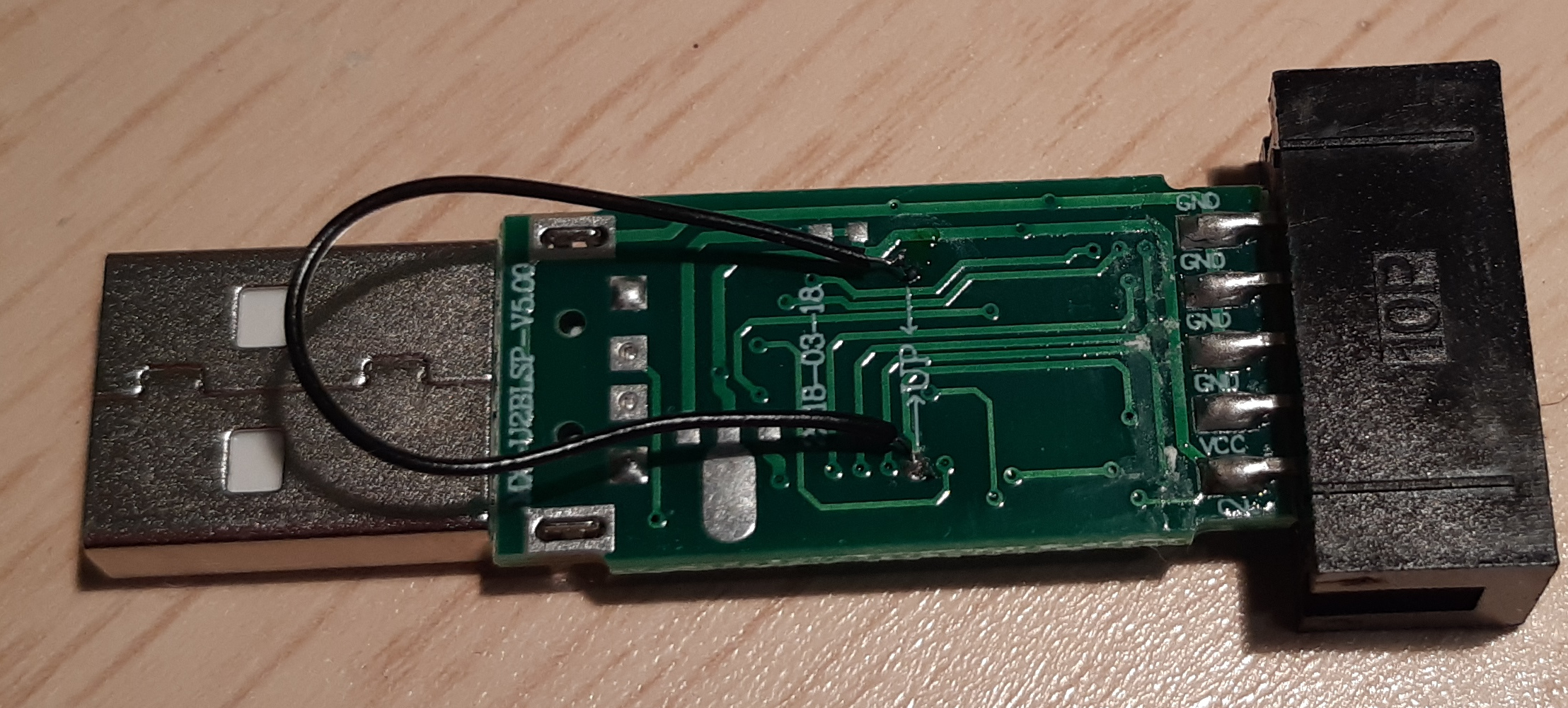

Using a very thin wire, solder the two pins on the USB-ISP PCB that are marked as ”→ UP ←”
Do not connect any cable yet and leave the USB connector unconnected.
Download usbasp.2011-05-28.tar.gz. The controller in our USB-ISP is an ATmega88, so extract file /bin/usbasp.atmega88.2011-05-28.hex
.
Rename the file to “usbasp.atmega88.2011-05-28.original.hex”.
$ mv usbasp.atmega88.2011-05-28.hex usbasp.atmega88.2011-05-28.original.hex
Make a copy of the file:
$ cp usbasp.atmega88.2011-05-28.original.hex usbasp.atmega88.2011-05-28.hacked.hex
Change the file permissions of the original file to read-only, so that we do not modify it by accident.
$ chmod 444 usbasp.atmega88.2011-05-28.original.hex
Open usbasp.atmega88.2011-05-28.hacked.hex
with a text editor and make the modification in line 185 of the hex file, as shown in Darell Tan's blog. Do not bother finding the differences, just change the entire line. The description of this modification is very elegant and is described in detail by Darell.
In the ATmega88 HEX file, the corresponding code is located on line 185, and here’s the line with the bytes
highlighted:
:100B8000D9F77A9589F708951BB815B88BEF8AB90C
Let’s patch the code to set DDRD = 0b1111_0000, thus the corresponding new bytes should be 0x80EF and the correct checksum for that line should now be 0x17:
:100B8000D9F77A9589F708951BB815B880EF8AB917
Now it is the time to flash the hacked hex file into the ATmega88. Go to the folder where avrdude is. Use your own path. Mine was:
$ cd ~/.arduino15/packages/arduino/tools/avrdude/6.3.0-arduino17/bin
Considering that your Arduino board is identified as device /dev/ttyUSB0
, run:
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p atmega328 -vv -C ../etc/avrdude.conf
Notice the parameters:
-c stk500v1 -b 19200 : This is to make avrdude communicate with a Arduino ISP, implementing the stk500v1 protocol at 19200bps. We need this setting if our programmer is Arduino (Uno, Nano etc). If you are using another programmer, set the appropriate protocol
-p atmega328 : This is because we still talk to our Arduino programmer (Uno or Nano)
-vv : To enable verbose output
-C ../etc/avrdude.conf : To set the configuration file
We must have an output like this:
avrdude: Version 6.3-20190619 Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/ Copyright (c) 2007-2014 Joerg Wunsch System wide configuration file is "../etc/avrdude.conf" User configuration file is "/home/myuser/.avrduderc" User configuration file does not exist or is not a regular file, skipping Using Port : /dev/ttyUSB0 Using Programmer : stk500v1 Overriding Baud Rate : 19200 AVR Part : ATmega328 Chip Erase delay : 9000 us PAGEL : PD7 BS2 : PC2 RESET disposition : dedicated RETRY pulse : SCK serial program mode : yes parallel program mode : yes Timeout : 200 StabDelay : 100 CmdexeDelay : 25 SyncLoops : 32 ByteDelay : 0 PollIndex : 3 PollValue : 0x53 Memory Detail : Block Poll Page Polled Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack ----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- --------- eeprom 65 20 4 0 no 1024 4 0 3600 3600 0xff 0xff flash 65 6 128 0 yes 32768 128 256 4500 4500 0xff 0xff lfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 hfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 efuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 lock 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00 signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00 Programmer Type : STK500 Description : Atmel STK500 Version 1.x firmware Hardware Version: 2 Firmware Version: 1.18 Topcard : Unknown Vtarget : 0.0 V Varef : 0.0 V Oscillator : Off SCK period : 0.1 us avrdude: AVR device initialized and ready to accept instructions Reading | ################################################## | 100% 0.02s avrdude: Device signature = 0xff00ff avrdude: Expected signature for ATmega328 is 1E 95 14 Double check chip, or use -F to override this check. avrdude done. Thank you.
We are at the right track.
Insert the connector at the other end of the ribbon cable to the box header of the USB-ISP. NOTE: LEAVE THE USB CONNECTOR OF THE USB_ISP UNCONNECTED. The board will be powered by our Arduino programmer.
Run the command again.
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p atmega328 -vv -C ../etc/avrdude.conf
At the end you shall see:
avrdude: Device signature = 0x1e930a (probably m88) avrdude: Expected signature for ATmega328 is 1E 95 14 Double check chip, or use -F to override this check. avrdude done. Thank you.
The “Device signature = 0x1e930a (probably m88)“ means that avrdude recognizes the ATMega88 (m88). Do not worry about the “Double check” message. We just wanted to see if we can communicate.
Now it is time to talk to the ATmega88. Run the command, changing the processor definition from -p m328
to -p m88
:
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p m88 -vv -C ../etc/avrdude.conf
At the end, we shall see:
avrdude: Device signature = 0x1e930a (probably m88) avrdude: safemode: lfuse reads as FF avrdude: safemode: hfuse reads as DD avrdude: safemode: efuse reads as F9 avrdude: safemode: lfuse reads as FF avrdude: safemode: hfuse reads as DD avrdude: safemode: efuse reads as F9 avrdude: safemode: Fuses OK (E:F9, H:DD, L:FF)
These are the signature and fuse settings of ATmega88. The USBasp firmware requires those fuses to be: lfuse FF, hfuse DD. It seems that the fuses are already programmed to the values that we want. If they were not, we could set them with avrdude, using the following parameters:
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p m88 -vv -C ../etc/avrdude.conf -U lfuse:w:0xff:m -U hfuse:w:0xdd:m -U efuse:w:0xf9:m
Read the original flash memory of the ATmega88 and save to file. This step is optional but we want first to make sure that we have proper communication and second to keep the current firmware, just in case we would like to restore it for any reason. We shall call this firmware “usbisp_firmware_backup.hex” and store it into the folder you like. Note that we need to provide an absolute path.
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p m88 -vv -C ../etc/avrdude.conf -U flash:r:/home/myuser/somefolder/usbisp_firmware_backup.hex:i
Make the file read-only, just for protection.
$ chmod 444 /home/myuser/somefolder/usbisp_firmware_backup.hex
Now, program the USB-ISP with the hacked hex file containing the USB-ASP firmware:
$ ./avrdude -c stk500v1 -b 19200 -P/dev/ttyUSB0 -p m88 -vv -C ../etc/avrdude.conf -U flash:w:/home/myuser/somefolder/usbasp.atmega88.2011-05-28.hacked.hex:i
The full output is:
avrdude: Version 6.3-20190619 Copyright (c) 2000-2005 Brian Dean, http://www.bdmicro.com/ Copyright (c) 2007-2014 Joerg Wunsch System wide configuration file is "../etc/avrdude.conf" User configuration file is "/home/myuser/.avrduderc" User configuration file does not exist or is not a regular file, skipping Using Port : /dev/ttyUSB0 Using Programmer : stk500v1 Overriding Baud Rate : 19200 AVR Part : ATmega88 Chip Erase delay : 9000 us PAGEL : PD7 BS2 : PC2 RESET disposition : dedicated RETRY pulse : SCK serial program mode : yes parallel program mode : yes Timeout : 200 StabDelay : 100 CmdexeDelay : 25 SyncLoops : 32 ByteDelay : 0 PollIndex : 3 PollValue : 0x53 Memory Detail : Block Poll Page Polled Memory Type Mode Delay Size Indx Paged Size Size #Pages MinW MaxW ReadBack ----------- ---- ----- ----- ---- ------ ------ ---- ------ ----- ----- --------- eeprom 65 20 4 0 no 512 4 0 3600 3600 0xff 0xff flash 65 6 64 0 yes 8192 64 128 4500 4500 0xff 0xff lfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 hfuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 efuse 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 lock 0 0 0 0 no 1 0 0 4500 4500 0x00 0x00 calibration 0 0 0 0 no 1 0 0 0 0 0x00 0x00 signature 0 0 0 0 no 3 0 0 0 0 0x00 0x00 Programmer Type : STK500 Description : Atmel STK500 Version 1.x firmware Hardware Version: 2 Firmware Version: 1.18 Topcard : Unknown Vtarget : 0.0 V Varef : 0.0 V Oscillator : Off SCK period : 0.1 us avrdude: AVR device initialized and ready to accept instructions Reading | ################################################## | 100% 0.02s avrdude: Device signature = 0x1e930a (probably m88) avrdude: safemode: lfuse reads as FF avrdude: safemode: hfuse reads as DD avrdude: safemode: efuse reads as F9 avrdude: NOTE: "flash" memory has been specified, an erase cycle will be performed To disable this feature, specify the -D option. avrdude: erasing chip avrdude: reading input file "/home/myuser/....../usbasp.atmega88.2011-05-28.hacked.hex" avrdude: writing flash (4716 bytes): Writing | ################################################## | 100% 9.32s avrdude: 4716 bytes of flash written avrdude: verifying flash memory against /home/myuser/....../usbasp.atmega88.2011-05-28.hacked.hex: avrdude: load data flash data from input file /home/myuser/....../usbasp.atmega88.2011-05-28.hacked.hex: avrdude: input file /home/myuser/....../usbasp.atmega88.2011-05-28.hacked.hex contains 4716 bytes avrdude: reading on-chip flash data: Reading | ################################################## | 100% 4.67s avrdude: verifying ... avrdude: 4716 bytes of flash verified avrdude: safemode: lfuse reads as FF avrdude: safemode: hfuse reads as DD avrdude: safemode: efuse reads as F9 avrdude: safemode: Fuses OK (E:F9, H:DD, L:FF) avrdude done. Thank you.
Now, disconnect the IDC connector from USB-ISP.
Also disconnect the Arduino programmer from the USB port. We will not need it any longer.
Unsolder the wire bridge in the → UP ←
pins of USB-ISP.
It is time to connect USB-ISP to the PC USB port to see what we have done. If all is well, the LED should light BLUE, instead of red before.
See the report of the USB devices
$ lsusb Bus 003 Device 005: ID 16c0:05dc Van Ooijen Technische Informatica shared ID for use with libusb $ dmesg [ 3104.019558] usb 3-1.3: new low-speed USB device number 6 using uhci_hcd [ 3104.155292] usb 3-1.3: New USB device found, idVendor=16c0, idProduct=05dc [ 3104.155297] usb 3-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 3104.155300] usb 3-1.3: Product: USBasp [ 3104.155303] usb 3-1.3: Manufacturer: www.fischl.de
The device is now recognized as a USBasp with Manufacturer: www.fischl.de. This is a sign that flashing the USBasp firmware was successful.
Assemple back the PCB into the metal casing.
We now have a functional USB-ISP programmer running the USBasp firmware. But we have not finished. We must make Arduino IDE able to use this device.
Start Arduino IDE, select “Programmer “USBasp”
and try to upload Blink example to a bare ATMega328
using Sketch→ Upload Using Programmer
You may get an error:
avrdude: Warning: cannot open USB device: Permission denied
This means that we should instruct Linux to recognize the new USB device and allow users with non-root permission to access it.
In usbasp.2011-05-28.tar.gz there is a folder linux-nonroot
. Extract it to the working directory.
The instructions are to copy file 99-USBasp.rules
to /etc/udev/rules.d
of our Linux PC. But the README file in /etc/udev/rules.d
of my Linux Mint, instructs (as per my understanding) to use /lib/udev/rules.d
instead.
In addition, it was necessary to make the following two modifications in the contents of file 99-USBasp.rules
:
$ groups
to see the current group participation.
Use a text editor to make those changes and finally, 99-USBasp.rules
will have the content:
# USBasp - USB programmer for Atmel AVR controllers SUBSYSTEM=="usb", ENV{DEVTYPE}=="usb_device", ATTRS{idVendor}=="16c0", ATTRS{idProduct}=="05dc", MODE="0666", GROUP="dialout"
Now copy it to the destination folder:
$ sudo cp 99-USBasp.rules /lib/udev/rules.d/99-USBasp.rules
Restart udev, or reboot. Use systemctl if your system runs on systemd
$ /etc/init.d/udev restart
Next problem: avrdude reports error
$ ./avrdude -c usbasp -p m328p -F -C ../etc/avrdude.conf ...... avrdude: error: program enable: target doesn't answer. 1
With the avrdude -F
option, I found that the Device signature changes every time I run the command, although it was expected to locate an MCU with 1E 95 0F!
avrdude: Device signature = 0xc837d5 avrdude: Expected signature for ATmega328P is 1E 95 0F
The problem here is that the chip that we want to program is very slow and cannot respond at the speed of our programmer. Remember that an ATmega328 straight from the factory, without any bootloader, comes preset to 8MHz RC internal clock and CKDIV8 fuse programmed to 0, lowering the clock to 1MHz. To make avrdude speak “slower” we need to specify the parameter -B
and set it to a value of 10
or higher.
From http://www.nongnu.org/avrdude/user-manual/avrdude_4.html
-B bitclock
Specify the bit clock period for the JTAG interface or the ISP clock (JTAG ICE only). The value is a >floating-point number in microseconds. The default value of the JTAG ICE results in about 1 microsecond bit >clock period, suitable for target MCUs running at 4 MHz clock and above. Unlike certain parameters in the >STK500, the JTAG ICE resets all its parameters to default values when the programming software signs off from >the ICE, so for MCUs running at lower clock speeds, this parameter must be specified on the command-line. It >can also be set in the configuration file by using the ’default_bitclock’ keyword.
So the solution is to add -B 10
in avrdude invocations.
Try again
$ ./avrdude -c usbasp -p m328p -F -C ../etc/avrdude.conf -B 10
and finally a response!
avrdude: set SCK frequency to 93750 Hz avrdude: AVR device initialized and ready to accept instructions Reading | ################################################## | 100% 0.01s avrdude: Device signature = 0x1e950f (probably m328p) avrdude: safemode: Fuses OK (E:FF, H:D9, L:62) avrdude done. Thank you.
To make the solution permanent, several online articles instruct to modify avrdude.conf and set
default_bitclock = 10;
But instead of messing with avrdude.conf
which affects all possible programmers, it is better to edit file programmers.txt
of your active folder. We have located its path in Step 1.
Find section
usbasp.name=USBasp usbasp.communication=usb usbasp.protocol=usbasp usbasp.program.protocol=usbasp usbasp.program.tool=avrdude usbasp.program.extra_params=-Pusb
and modify the last line to:
usbasp.program.extra_params=-Pusb -B 10
This modification will force avrdude to set parameters -Pusb -B 10
, in every invocation of USBasp programmer. We will be able to confirm by watching the messages at the IDE message pane. We still have active File→Preferences
Show verbose output during:
upload
checked, right?
Finally, I selected “Tools > Programmer: “USBasp”” and uploaded succesfully the Blink program using “Sketch→ Upload Using Programmer” to a blank ATmega328.
You now have a working USB-ISP programmer, running USBasp firmware and a fully functional Arduino IDE.
The original purpose was to purchase a cheap programmer to avoid the clutter of having an Arduino Nano and a bunch of cables, and to avoid wiring manually every time I wished to program an MCU. The result was that I really needed the Nano in order to re-flash the firmware of the USB-ISP and additionally, I have spent a couple of days figuring out how to deal with the situation.
In spite of the fact that now I am the proud owner of a USBasp programmer, which along with a ZIF socket will allow me to make my programming process easier (alas only in particular cases because it is not a professional programmer), I have decided to keep my bare-bones Nano programmer with its bunch of wires in a drawer, just in case. As I said at the beginning of this article, this is just for hobbyist fun. Did not expect anything more at a price of less than two euros.
Have fun…
